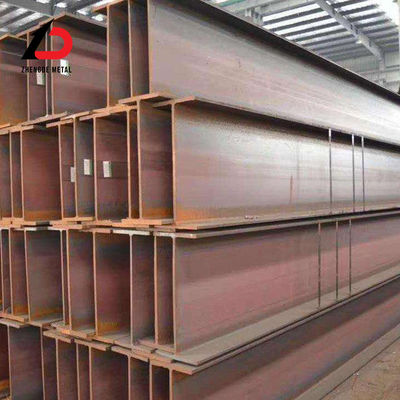

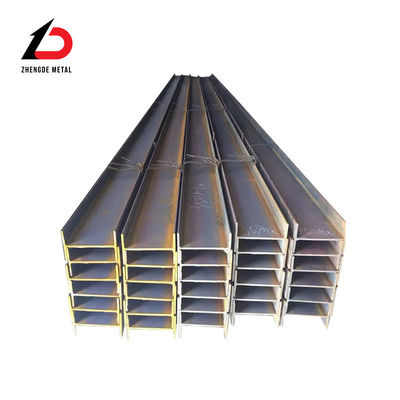

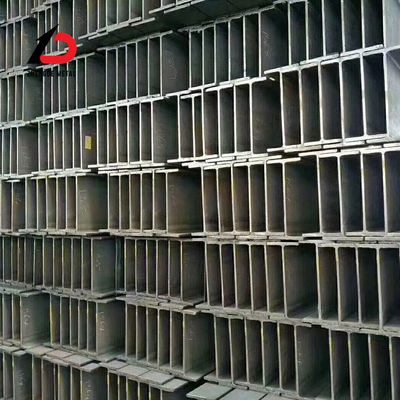

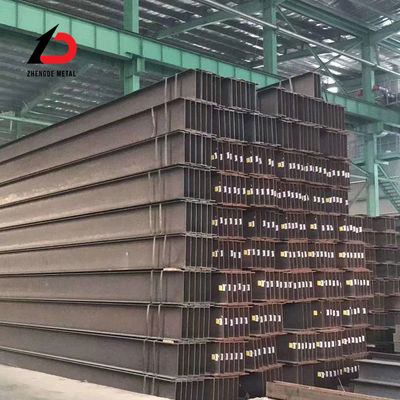

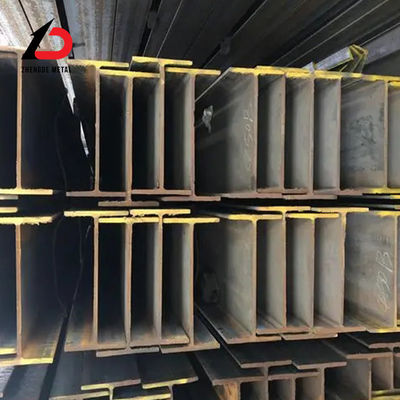

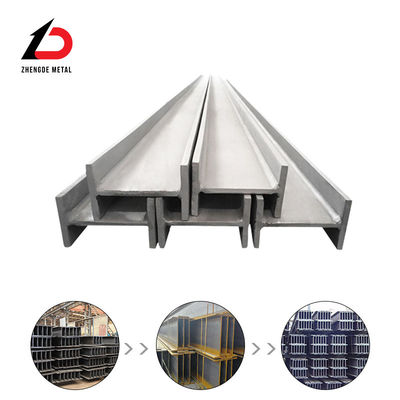

Stal w kształcie litery H jest profilem o wysokiej wydajności z bardziej zoptymalizowanym rozkładem powierzchni przekroju poprzecznego i bardziej rozsądnym stosunkiem wytrzymałości do masy.Ponieważ wszystkie części stali w kształcie H są ustawione pod kątem prostymW przypadku stali o kształcie H, która ma zalety silnej odporności na gięcie we wszystkich kierunkach, prostej konstrukcji, oszczędności kosztów i lekkiej masy konstrukcyjnej, jest szeroko stosowana.
Standardowy ASTM amerykański standard H-beam ma trzy główne klasy jakości: A36, A572, A992, itp. Materiał A36 i materiał A572 reprezentują stalową konstrukcję węglową, a A992 jest stali niskiego stopnia.
Europejska stal standardowa z sekcją UB - brytyjska stal standardowa z sekcją H, stosowana w różnych budynkach stalowych, inżynierii morskiej, energetyce.Stalo kanałowe europejskie, europejska standardowa wiązka H, stosowana również w całkowitej konstrukcji platform naftowych na morzu, LNG, rafinerii i innych modułowych konstrukcjach stalowych.
1Standardy wdrażania specyfikacji:
BS EN 10365-2017 zastępuje starą normę EN10034-1993
2- Standardy wdrażania materiałów:
Materiał: S235JR/J0/J2, S275JR/J0/J2, S355JR/J0/J2/K2, S450J0
| Wiązki uniwersalne | ||||||||||||||||
| Specyfikacja:BS EN 10025-2:2004Wymiar:BS4-1:2005Tolerancja:BS EN 10034:1993 | ||||||||||||||||
| Wyznaczenie | h | b | s | t | Obszar | IX | Nie | IX | w | Zx | Zy | |||||
| mmxmmxkg/m | mm | mm | mm | mm | cm2 | cm4 | cm4 | cm | cm | cm3 | cm3 | |||||
| 127x76x13 | 127.0 | 76.0 | 4.0 | 7.6 | 16.5 | 473 | 55.7 | 5.35 | 1.84 | 74.6 | 14.7 | |||||
| 152x89x16 | 152.4 | 88.7 | 4.5 | 7.7 | 20.3 | 834 | 89.8 | 6.41 | 2.10 | 110 | 20.2 | |||||
| 178x102x19 | 177.8 | 101.2 | 4.8 | 7.9 | 24.3 | 1,356 | 137 | 7.48 | 2.37 | 153 | 27.0 | |||||
| 203x102x23 | 203.2 | 101.8 | 5.4 | 9.3 | 29.4 | 2,105 | 164 | 8.46 | 2.36 | 207 | 32.2 | |||||
| 203x133x25 | 203.2 | 133.2 | 5.7 | 7.8 | 32.0 | 2,340 | 308 | 8.56 | 3.10 | 230 | 46.0 | |||||
| 203x133x30 | 206.8 | 133.9 | 6.4 | 9.6 | 38.2 | 2,896 | 385 | 8.71 | 3.17 | 280 | 57.5 | |||||
| 254x102x22 | 254.0 | 101.6 | 5.7 | 6.8 | 28.0 | 2,841 | 119 | 10.10 | 2.06 | 224 | 23.5 | |||||
| 254x102x25 | 257.2 | 101.9 | 6.0 | 8.4 | 32.0 | 3,415 | 149 | 10.30 | 2.15 | 266 | 29.0 | |||||
| 254x102x28 | 260.4 | 102.2 | 6.3 | 10.0 | 36.1 | 4,005 | 179 | 10.50 | 2.22 | 308 | 35.0 | |||||
| 254x146x31 | 251.4 | 146.1 | 6.0 | 8.6 | 39.7 | 4,413 | 448 | 10.55 | 3.36 | 351 | 61.0 | |||||
| 254x146x37 | 256.0 | 146.4 | 6.3 | 10.9 | 47.2 | 5,537 | 571 | 10.80 | 3.48 | 433 | 78.0 | |||||
| 254x146x43 | 259.6 | 147.3 | 7.2 | 12.7 | 54.8 | 6,544 | 677 | 10.90 | 3.52 | 504 | 92.0 | |||||
| 305x102x25 | 305.1 | 101.6 | 5.8 | 7.0 | 31.6 | 4,455 | 123 | 11.87 | 1.97 | 292 | 24.2 | |||||
| 305x102x28 | 308.7 | 101.8 | 6.0 | 8.8 | 35.9 | 5,366 | 155 | 12.23 | 2.08 | 348 | 30.5 | |||||
| 305x102x33 | 312.7 | 102.4 | 6.6 | 10.8 | 41.8 | 6,501 | 194 | 12.47 | 2.15 | 416 | 37.9 | |||||
| 305x127x37 | 304.4 | 123.4 | 7.1 | 10.7 | 47.2 | 7,171 | 336 | 12.30 | 2.67 | 471 | 54.5 | |||||
| 305x127x42 | 307.2 | 124.3 | 8.0 | 12.1 | 53.4 | 8,196 | 389 | 12.40 | 2.70 | 534 | 62.6 | |||||
| 305x127x48 | 311.0 | 125.3 | 9.0 | 14.0 | 61.2 | 9,575 | 461 | 12.50 | 2.74 | 616 | 73.6 | |||||
| 305x165x40 | 303.4 | 165.0 | 6.0 | 10.2 | 51.3 | 8,503 | 764 | 12.90 | 3.86 | 560 | 93.0 | |||||
| 305x165x46 | 306.6 | 165.7 | 6.7 | 11.8 | 58.7 | 9,899 | 896 | 13.00 | 3.90 | 646 | 108 | |||||
| 305x165x54 | 310.4 | 166.9 | 7.9 | 13.7 | 68.8 | 11,700 | 1063 | 13.00 | 3.93 | 754 | 127 | |||||
| 356x127x33 | 349.0 | 125.4 | 6.0 | 8.5 | 42.1 | 8,249 | 280 | 14.00 | 2.58 | 473 | 45.0 | |||||
| 356x127x39 | 353.4 | 126.0 | 6.6 | 10.7 | 49.8 | 10,172 | 358 | 14.30 | 2.68 | 576 | 57.0 | |||||
| 356x171x45 | 351.4 | 171.1 | 7.0 | 9.7 | 57.3 | 12,070 | 811 | 14.50 | 3.76 | 687 | 95.0 | |||||
| 356x171x51 | 355.0 | 171.5 | 7.4 | 11.5 | 64.9 | 14,140 | 968 | 14.80 | 3.86 | 796 | 113 | |||||
| 356x171x57 | 358.0 | 172.2 | 8.1 | 13.0 | 72.6 | 16,040 | 1108 | 14.90 | 3.91 | 896 | 129 | |||||
| 356x171x67 | 363.4 | 173.2 | 9.1 | 15.7 | 85.5 | 19,460 | 1362 | 15.10 | 3.99 | 1,071 | 157 | |||||
| 406x140x39 | 398.0 | 141.8 | 6.4 | 8.6 | 49.7 | 12,508 | 410 | 15.90 | 2.87 | 629 | 58.0 | |||||
| 406x140x46 | 403.2 | 142.2 | 6.8 | 11.2 | 58.6 | 15,685 | 538 | 16.40 | 3.03 | 778 | 76.0 | |||||
| 406x178x54 | 402.6 | 177.7 | 7.7 | 10.9 | 69.0 | 18,720 | 1021 | 16.50 | 3.85 | 930 | 115 | |||||
| 406x178x60 | 406.4 | 177.9 | 7.9 | 12.8 | 76.5 | 21,600 | 1203 | 16.80 | 3.97 | 1,063 | 135 | |||||
| 406x178x67 | 409.4 | 178.8 | 8.8 | 14.3 | 85.5 | 24,330 | 1365 | 16.90 | 3.99 | 1,189 | 153 | |||||
| 406x178x74 | 412.8 | 179.5 | 9.5 | 16.0 | 94.5 | 27,310 | 1545 | 17.00 | 4.04 | 1,323 | 172 | |||||
| 457x152x52 | 449.8 | 152.4 | 7.6 | 10.9 | 66.6 | 21,370 | 645 | 17.90 | 3.11 | 950 | 85.0 | |||||
| 457x152x60 | 454.6 | 152.9 | 8.1 | 13.3 | 76.2 | 25,500 | 795 | 18.30 | 3.23 | 1,122 | 104 | |||||
| 457x152x67 | 458.0 | 153.8 | 9.0 | 15.0 | 85.6 | 28,930 | 913 | 18.40 | 3.27 | 1,263 | 119 | |||||
| 457x152x74 | 462.0 | 154.4 | 9.6 | 17.0 | 94.5 | 32,670 | 1047 | 18.60 | 3.33 | 1,414 | 136 | |||||
| 457x152x82 | 465.8 | 155.3 | 10.5 | 18.9 | 104.5 | 36,590 | 1185 | 18.70 | 3.37 | 1,571 | 152.5 | |||||
| 457x191x67 | 453.4 | 189.9 | 8.5 | 12.7 | 85.5 | 29,380 | 1452 | 18.50 | 4.12 | 1,296 | 153 | |||||
| 457x191x74 | 457.0 | 190.4 | 9.0 | 14.5 | 94.6 | 33,320 | 1671 | 18.80 | 4.20 | 1,458 | 176 | |||||
| 457x191x82 | 460.0 | 191.3 | 9.9 | 16.0 | 104.5 | 37.050 | 1871 | 18.80 | 4.23 | 1,611 | 196 | |||||
| 457x191x89 | 463.4 | 191.9 | 10.5 | 17.7 | 113.8 | 41,020 | 2089 | 19.00 | 4.29 | 1,770 | 218 | |||||
| 457x191x98 | 467.2 | 192.8 | 11.4 | 19.6 | 125.3 | 45,730 | 2347 | 19.10 | 4.33 | 1,957 | 243 | |||||
| 533x210x82 | 528.3 | 208.8 | 9.6 | 13.2 | 104.7 | 47,540 | 2007 | 21.30 | 4.38 | 1,800 | 192 | |||||
| 533x210x92 | 533.1 | 209.3 | 10.1 | 15.6 | 117.4 | 55,230 | 2389 | 21.70 | 4.51 | 2,072 | 228 | |||||
| 533x210x101 | 536.7 | 210.0 | 10.8 | 17.4 | 128.7 | 61,520 | 2692 | 21.90 | 4.57 | 2,292 | 256 | |||||
| 533x210x109 | 539.5 | 210.8 | 11.6 | 18.8 | 138.9 | 66,820 | 2943 | 21.90 | 4.60 | 2,477 | 279 | |||||
| 533x210x122 | 544.5 | 211.9 | 12.7 | 21.3 | 155.4 | 76,040 | 3388 | 22.10 | 4.67 | 2,793 | 320 | |||||
| 610x229x101 | 602.6 | 227.6 | 10.5 | 14.8 | 128.9 | 75,780 | 2915 | 24.20 | 4.75 | 2,515 | 256 | |||||
| 610x229x113 | 607.6 | 228.2 | 11.1 | 17.3 | 143.9 | 87,320 | 3434 | 24.60 | 4.88 | 2,874 | 301 | |||||
| 610x229x125 | 612.2 | 229.0 | 11.9 | 19.6 | 159.3 | 98,610 | 3932 | 24.90 | 4.97 | 3,221 | 343 | |||||
| 610x229x140 | 617.2 | 203.2 | 13.1 | 22.1 | 178.2 | 111,800 | 4505 | 25.00 | 5.03 | 3,622 | 391 | |||||
| 610x305x149 | 612.4 | 304.8 | 11.8 | 19.7 | 190.0 | 125,900 | 9308 | 25.70 | 7.00 | 4,111 | 611 | |||||
| 610x305x179 | 620.2 | 307.1 | 14.1 | 23.6 | 228.0 | 153,000 | 11408 | 25.90 | 7.07 | 4,935 | 743 | |||||
| 610x305x238 | 635.8 | 311.4 | 18.4 | 31.4 | 303.3 | 209,500 | 15837 | 26.28 | 7.22 | 6,589 | 1,017 | |||||
| 686x254x125 | 677.9 | 253.0 | 11.7 | 16.2 | 159.5 | 118,000 | 4383 | 27.20 | 5.24 | 3,481 | 346 | |||||
| 686x254x140 | 683.5 | 253.7 | 12.4 | 19.0 | 178.4 | 136,300 | 5183 | 27.60 | 5.39 | 3,987 | 409 | |||||
| 686x254x152 | 687.5 | 254.5 | 13.2 | 21.0 | 194.1 | 150,400 | 5784 | 27.80 | 5.46 | 4,374 | 455 | |||||
| 686x254x170 | 692.9 | 255.8 | 14.5 | 23.7 | 216.8 | 170,300 | 6630 | 28.00 | 5.53 | 4,916 | 518 | |||||
| 762x267x134 | 750.0 | 264.4 | 12.0 | 15.5 | 171.0 | 150,700 | 4788 | 29.70 | 5.30 | 4,018 | 362 | |||||
| 762x267x147 | 754.0 | 265.2 | 12.8 | 17.5 | 187.2 | 168,500 | 5455 | 30.00 | 5.40 | 4,470 | 411.4 | |||||
| 762x267x173 | 762.2 | 266.7 | 14.3 | 21.6 | 220.4 | 205,300 | 6850 | 30.52 | 5.58 | 5,387 | 513.7 | |||||
| 762x267x197 | 769.8 | 268.0 | 15.6 | 25.4 | 250.6 | 240,000 | 8175 | 30.94 | 5.71 | 6,234 | 610.1 | |||||
| 838x292x176 | 834.9 | 291.7 | 14.0 | 18.8 | 224.0 | 246,000 | 7799 | 33.14 | 5.90 | 5,893 | 534.7 | |||||
| 838x292x194 | 840.7 | 292.4 | 14.7 | 21.7 | 264.8 | 279,200 | 9066 | 33.63 | 6.06 | 6,641 | 620.1 | |||||
| 838x292x226 | 850.9 | 293.8 | 16.1 | 26.8 | 288.6 | 339,700 | 11360 | 34.31 | 6.27 | 7,985 | 773.3 | |||||
| 914x305x201 | 903.0 | 303.3 | 15.1 | 20.2 | 255.9 | 325,300 | 9423 | 35.65 | 6.07 | 7,204 | 621.4 | |||||
| 914x305x224 | 910.4 | 304.1 | 15.9 | 23.9 | 285.6 | 376,400 | 11240 | 36.30 | 6.27 | 8,269 | 739 | |||||
| 914x305x253 | 918.4 | 305.5 | 17.3 | 27.9 | 322.8 | 436,300 | 13300 | 36.76 | 6.42 | 9,501 | 870.8 | |||||
| 914x305x289 | 926.6 | 307.7 | 19.5 | 32.0 | 368.3 | 504,200 | 15600 | 37.00 | 6.51 | 10,880 | 1,014 | |||||
| 914x419x343 | 911.8 | 418.5 | 19.4 | 32.0 | 437.3 | 625,800 | 39160 | 37.83 | 9.46 | 13,730 | 1,871 | |||||
| 914x419x388 | 921.0 | 420.5 | 21.4 | 36.6 | 494.2 | 719,600 | 45440 | 38.16 | 9.56 | 15,630 | 2,161 | |||||
Shandong Zhengde Metal Manufacturing Co., Ltd.jest przedsiębiorstwem produkującym i sprzedającym walcowane na gorąco cewki stalowe, walcowane na zimno cewki stalowe, walcowane na cynkowane cewki stalowe, walcowane na barwie cewki stalowe, cewki stalowe, cewki stalowe, siatki metalowe,stali nierdzewnej, aluminium, miedzi i innych wyrobów metalowych zintegrowane duże przedsiębiorstwa.z ponad 100 liniami produkcyjnymiProdukty są eksportowane do ponad 50 krajów i regionów, takich jak Ameryka Północna,Ameryka Południowa, Europa, Afryka, Oceania, Bliski Wschód i Azja Południowo-Wschodnia.
