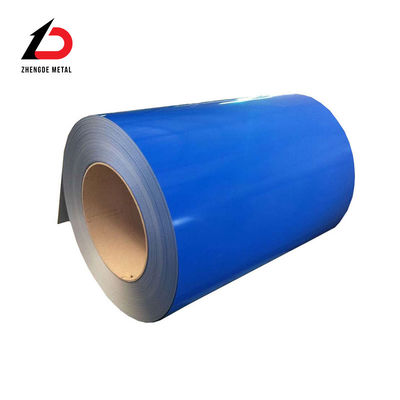

Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications

1ton
MOQ
negoiate
Cena £
Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications
cechy Galeria opis produktu Poprosić o wycenę
cechy
specyfikacje
Model nr: ZD-PPGI
Aplikacja: PPGI
Krawędź: Przekręć krawędź
Magazyn: Magazyn
Grubość: 1 mm-30 mm lub zgodnie z wymaganiami
Szerokość: 10 mm-3000 mm, zgodnie z wymaganiami
Cykl niestandardowy: 7-15 dni
Kolor: Standardowy kolor czerwony, niebieski, biały, szary, RAL
Powierzchnia: Cynkowane ogniowo, wstępnie malowane
Typ powłoki: PE/SMP/HDP/PVDF
Powłoka cynku: 30-275G/M2
Usługi przetwarzania: Spawanie Wykrawanie Cięcie Rozwijanie
Produkcja: 500 ton/miesiąc
Czas dostawy: Zgodnie z wymaganiami
HS: 7210490000
Pakiet transportowy: Eksportuj standardowy pakiet/jako żądanie
Specyfikacja: Zgodnie z wymaganiami klienta
Znak firmowy: ZHENGDE
Pochodzenie: CHINY
Kod HS: 7210490000
Możliwość Supply: 30000 ton / miesiąc
Gwarancja produktu: Według środowiska użytkowania
Standard produktu: ASTM, JIS, GB, AISI, DIN, BS
Podkreślić:

10mm-3000mm Width PPGI Steel Coil

,

500 Tons/Month Production PPGI Steel Coil

,

30000 Tons/Month Supply Ability PPGI Steel Coil
Podstawowe informacje
Miejsce pochodzenia: Chnia
Nazwa handlowa: Zhengde
Document: Zhengde Metal Product Catal...og.PDF
Zapłata
Szczegóły pakowania: Ustawienia klienta
Czas dostawy: 10 dni
opis produktu
Durable PPGI Steel Coil - Pre-Painted Galvanized Steel for Industrial and Construction Use
Standard Colors: Red, Blue, White, Grey, RAL Color Factory Supply
PPGI (Pre-Painted Galvanized Iron) is pre-coated steel, also known as coil coated steel or color coated steel, with a hot dip zinc coated steel substrate.
Product Specifications
Category Standard Value
Executive standard National standard GB/T12754-2019
American Standard/European Standard ASTM A792M
Cold rolled substrate Width specification 1200mm
Cold rolled substrate thickness Including metallized layer ≥0.41mm
Thickness after painting Label thickness ≥0.46mm (≥0.45mm)
Size deviation Width tolerance Upper deviation +4mm, Lower deviation 0
Thickness tolerance Upper deviation +0.05mm, Lower deviation 0
Yield Strength >300MPA
Tensile strength 270-500MPA
Elongation after break More than 20%
Steel coil inner diameter Standard: 508mm (except for other agreements)
Metal Coating Specifications
  • Alloy composition: AlZnMg or galvanized AlMg
  • Total Weight of Plating Both Sides (Outside/Inside): 150g/ (75/75 or 85/65)
  • Neutral salt spray test: ≥2500 hours surface (without passivation), no red rust
  • Wound surface (end surface) salt spray test: ≥1200 hours, no red rust
PPGI Paint Specifications
  • PE coating structure standard (μm): Outside ≥25, Inside ≥7
  • Pencil hardness: Not less than HB
  • Specular Gloss of Topcoat: ≥40 degrees
  • T bend value: 2T
  • Impact energy: Not less than 9J
  • Neutral salt spray test: ≥1500h without bubbles
  • UVB-313: ≥700h
PPGI Use Environment
  • Humidity: 20% to 90%
  • Temperature: Min -45°C, Max 43°C
  • Unit ammonia: <30ppm
  • Unit carbon dioxide: <7000ppm
  • Unit oxygen: 21%
  • Unit hydrogen sulfide: <5ppm
Our Advantages
Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications 0 Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications 1
Complete Range
We offer different types of color steel coils for various PPGI applications, including home appliances, optical materials, decorative materials, building materials, and packaging. The production process for home appliance-grade color steel coils is particularly refined.
Good Performance
Our color coated steel plates combine organic polymers with steel substrates, offering excellent anti-corrosion and decorative properties along with superior formability and processing characteristics.
Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications 2 Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications 3
5S Management
Before production, we implement strict 5S management protocols to ensure clean working environments, proper equipment maintenance, and correct material handling, guaranteeing product quality and worker safety.
Strict Quality Control
We meticulously inspect for all potential defects including surface imperfections, edge quality, coating uniformity, dimensional accuracy, and physical properties.
Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications 4 Durable PPGI Steel Coil with 10mm-3000mm Width and 500 Tons/Month Production Capacity for Wide Industrial Applications 5
Applications
PPGI Steel Coil is widely used in construction, home appliances, automotive, and agricultural industries. Common applications include roofing, wall cladding, cold storage facilities, appliance exteriors, automotive body panels, and corrosion-resistant industrial equipment.
